CLARIS ULTRA 1500

Adjustable ion-selective filters to tailor carbonate hardness levels in potable water. Part number: 4339-83

The Claris series filter cartridges are only compatible with the CLARIS heads designed for them. In all cases, the cartridges can be connected to the water network with the help of the Claris heads. They cannot be used on their own! You can find more information about the heads on the CLARIS HEADS page.

170 250 500 1000 1500 2000

SPECIFICATIONS

Service Flow Rate
3.7 Lpm (Maximum 1.0 gpm)
Rated Capacity
10,000 L (2,641 gallons) for Espresso and
12,100 L (3,196 gallons) for Coffee/OCS*
Pressure Requirements
2 – 8 bar (29 - 116 psi ), non-shock
Temperature Limits
4-30°C (39-86°F)

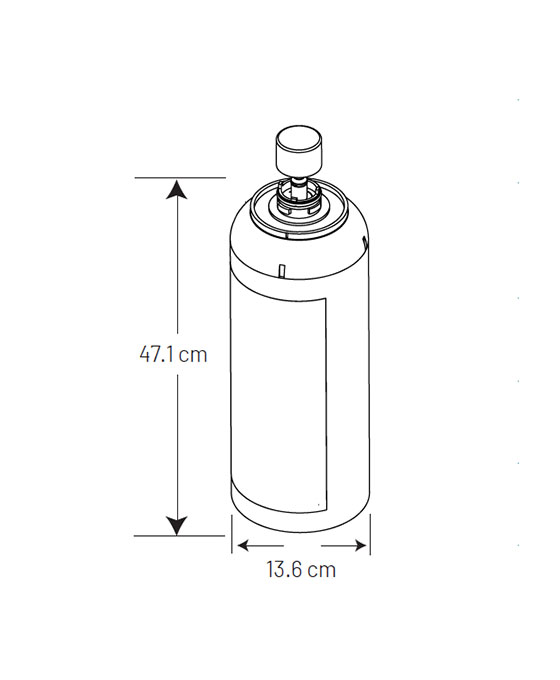

Overall Dimensions
47.1 cm x 13.6 cm (18.56” L x 5.35” dia.)
Electrical Connection
None required

*This capacity is based on influent water hardness of 180 ppm with standard bypass settings.

FEATURES • BENEFITS

Removes harmful
contaminants and unpleasant
odors and tastes

Removes particles down to
five (5) micron for highest
equipment protection

Operation in vertical or
horizontal position

Unique water conditioning technology combines mineral adaptation, mineral stabilization and corrosion inhibition

Features a 5-stage filtration process that includes:

Prefiltration
Carbonate hardness adjustment
Fine filtration
Highly efficient carbon block
Solid membrane filter

The contaminants or other substances removed or reduced by this drinking water system are not necessarily in your water. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

Specially selected filter fleeces hold back dirt and particles, thus providing lasting filter protection even when water quality is poor.

CLARIS
ULTRA
1500

Coffee
Office Coffee Service (OCS)
Espresso

Hot Drink Vending
Brewed Iced Tea

DATA SHEET

CLARIS Ultra water filter

Dimensions	Unit	170	250	500	1000	1500	2000
Internal filter volume	l	0.9	1.2	1.7	3.2	4.4	6.7
Filter height incl. filter head (A)	mm	295	365	475	410	525	525
Filter height (B)	mm	245	315	425	360	475	475
Max. filter head diameter (C)	mm	100	100	100	100	100	100
Max. filter diameter (D)	mm	95	95	95	136	136	175
Space for filter replacement (E)	mm	40	40	40	40	40	40
Weight	kg	0.9	1.3	1.8	3.2	4.3	6.5

Operating information	Unit	170	250	500	1000	1500	2000
Operating pressure (without pressure surges)	2-8 bar (29-116 psi)
Water temperature	4-30°C (39-86 °F)
Normal flow range*	l/h	15-120	15-120	15-120	15-240	15-240	15-240
Flow rate at a 0.5 bar drop in pressure	l/h	>150	>150	>150	>150	>150	>150
Installation position	vertical, horizontal
Bypass system	7 settings (0-60%)

*For short-term consumption, a higher flow rate is possible

Capacity (in l)	°dH*	°Clarke (GB)*	PPM*	°FH*	Bypass level	170	250	500	1000	1500	2000
Vending / Ice maker	10	13	179	18	6	1700	2500	4200	8500	12100	20000
Coffee / Espresso	10	13	179	18	6	1500	2250	3750	7000	10000	16500

*Carbonate hardness

TECHNOLOGIES AND SOLUTIONS FOR WATER PURIFICATION

Innovative technologies – combined to suit any application

	Claris	Claris Ultra	Claris N	Claris Prime
Particle filtration	+	+	+	+
Water softening			++	++
Mineral stabilization		++
pH balance		+	+	+
Chlorine reduction	+	+	+	+
Decarbonization	++	++	+	++
Heavy metal adsorption	++	++	++	++
Contaminant adsorption (organic)	+	+	+
Demineralization				+
Microplastics removal (≥5 μm)	+	+	+	+
Characteristic feature	Decarbonisation / Partial desalination	S+Pholyphosphat	Softener	Complete desalination + Bypass

Products comparison CLAROSWISS vs. BWT wam vs. BRITA

CLARIS Ultra

Filtertype	Size	Capacity	Filtertype	Size	Capacity	Filtertype	Size	Capacity
-	-	-	BWT Bestmax	X	600	BRITA Purity C Quell ST	-	-
CLARIS Ultra	170	1700	BWT Bestmax	S	1000	BRITA Purity C Quell ST	C50	960
CLARIS Ultra	250	2500	BWT Bestmax	V	2500	BRITA Purity C Quell ST	C150	2408
CLARIS Ultra	500	4200	BWT Bestmax	M	3800	BRITA Purity C Quell ST	C300	4000
CLARIS Ultra	-	-	BWT Bestmax	L	5200	BRITA Purity C Quell ST	-	-
CLARIS Ultra	1000	8500	BWT Bestmax	XL	6800	BRITA Purity C Quell ST	C500	6800
CLARIS Ultra	1500	12100	BWT Bestmax	2XL	12000	BRITA Purity C Quell ST	C1100	11500
CLARIS Ultra	2000	16500	-	-	-	-	-	-
CLARIS Ultra	500	4200	BWT Bestmax	M	3800	BRITA Purity Quell ST	450	4217
CLARIS Ultra	1000	8500	BWT Bestmax	XL	6800	BRITA Purity Quell ST	600	7207
CLARIS Ultra	1500	12100	BWT Bestmax	2XL	12000	BRITA Purity Quell ST	1200	13187

INSTALLATION TIPS

The system can be operated freestanding, lying horizonally or mounted vertically.
If mounting vertically to a wall, securely connect the mounting backet to the wall using suitable screws.
Water pressure at the filter system inlet must not exceed 8 bar (116 psi). A pressure reducer valve must be installed on the water supply side of the filter system if the inlet pressure exceeds 8 bar (116 psi).
Shutoff valve must be installed upstream of the filter.
Refer to Installation, Operation & Maintenance Manual for cartridge flushing and startup.

OPERATION TIPS

Change Claris Ultra Cartridges when its pre-calculated water volume has been reached or at least once per year.
Change cartridges when capacity is reached.
Always flush the filter cartridge at time of installation and cartridge change.
Do not use hardness test strips to check for hardness reduction. Please use the Claris Titration Kit to check for hardness reduction.

SIZING

Service Flow Rate: Maximum 3.7 Lpm (1.0 gpm)
Rated Capacity:
2,641 gallons (10,000 L) for Espresso
3,196 gallons (12,100 L) for Coffee/OCS*

*This capacity is based on influent water
hardness of 180 ppm with standard
bypass settings

Downloads

Technical Sheet Claris Ultra 1500 Filter Cartridge Műszaki adatlap Claris Ultra 1500 szűrőbetét HUN

ClaroSwiss szűrő használati utasítás HUN ClaroSwiss szűrő használati utasítás ENG
